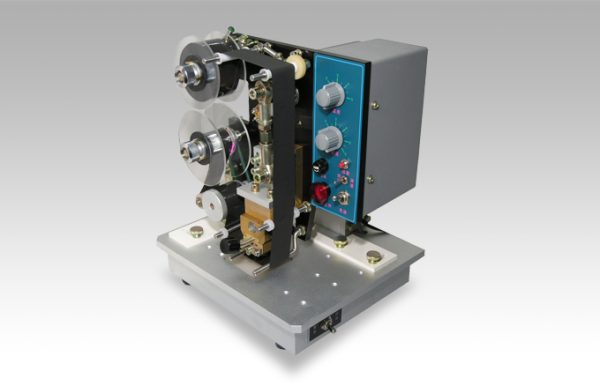

HDP-1 Hot Foil / Ribbon Printer

The HDP-1 hot foil / ribbon date printer ideal for imprinting date codes, lot numbers, expiration dates, and other letters/numbers onto plastic and paper bags. The imprinted result dries instantly and works great in humid environments. Two operating modes – automatic printing and manual printing available for user selection. The printing speed can be set in the automatic mode. In the manual mode, the imprinting is controlled by using the foot pedal switch. Equipped with vertical and horizontal guides. Pressure of imprinting can be adjusted easily.

Description

• Hot foil / ribbon printing.
• Easy installation and user friendly.
• Neat, clear & sharp printing character.
• Used ribbon disposal auto-winding.
• Low cost operation.
• Mechanically and motorized operation.
• Adjustable printing temperature.
• Foot switch operation or speed synchronization operation
• Emergency switch.
• Adjustable X-Y axis guides.
• 3 lines printing.

Model: HDP-1
Power: Single Phase AC 230V, 50Hz
Dimension: (L) 270mm x (W) 230mm x (H) 310mm
Character Dimension: (W) 2mm x (H) 4mm
Number of Characters Per Line: 15
Temperature: 0 to 200 °C
Character types: 5 sets of numeric (0-9), dots and spacing.
1 set of EXP and MFG
Other character available for purchase.
Ribbon: 25mm, 30mm, 32mm, 40mm; Black, White, Red, Blue
